Solar Panel Lifts for Roof Installation
Compare three PV panel lift configurations for rooftop solar installation, with lifting heights up to 25 m, 18-22 m/min lifting speed on specified models and load capacity up to 300 kg depending on lifting height and configuration.
Three Configurations for Rooftop PV Installation

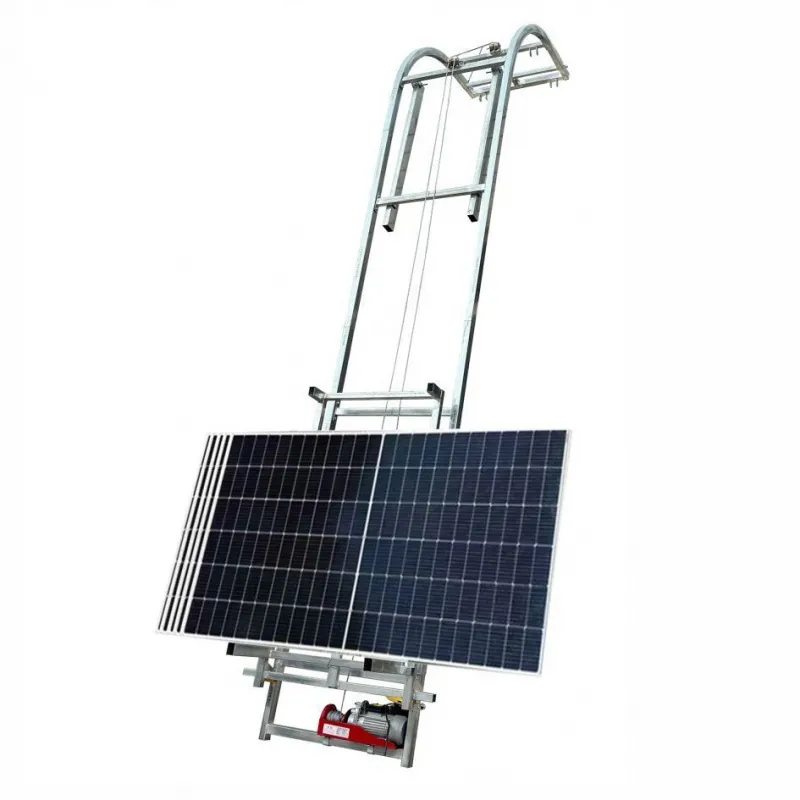

Flip-type PV Panel Lifter
Flip-Type Platform
- Lifting Height
- 4-25 m (customizable, sectional assembly)
- Load Capacity
- 200 kg (>=15 m), 230 kg (10-12 m), 250 kg (8-9 m), 260 kg (6-7 m), 300 kg (4-5 m)
- Lifting Speed
- 18-22 m/min
- Self-Weight
- 53-195 kg (varies by height)
- Motor
- PA200 copper-wound motor
- Support Rods
- Included for heights of 12 m and above
Sloping Roof Photovoltaic Panel Lift
Sloping Roof Configuration
- Lifting Height
- 6-25 m (customizable, sectional assembly)
- Load Capacity
- 200 kg (>=15 m), 230 kg (10-12 m), 250 kg (8-9 m), 300 kg (6-7 m)
- Lifting Speed
- 18-22 m/min
- Self-Weight
- 64-180 kg (varies by height)
- Motor
- PA200 copper-wound motor
- Support Rods
- Included for heights of 12 m and above
Automatic Turning Solar Panel Lift
Automatic Turning Configuration
- Lifting Height
- 4-25 m (customizable, sectional assembly)
- Load Capacity
- 200 kg (>=15 m), 230 kg (10-12 m), 250 kg (8-9 m), 260 kg (6-7 m), 300 kg (4-5 m)
- Self-Weight
- 75-202 kg (varies by height)
- Motor
- PA200 copper-wound motor
- Support Rods
- Included for heights of 12 m and above
Model Comparison
| Field | Flip-type | Sloping Roof Photovoltaic Panel Lift | Automatic Turning |
|---|---|---|---|
| Lifting Height | 4-25 m (customizable, sectional assembly) | 6-25 m (customizable, sectional assembly) | 4-25 m (customizable, sectional assembly) |
| Load Capacity | 200 kg (>=15 m), 230 kg (10-12 m), 250 kg (8-9 m), 260 kg (6-7 m), 300 kg (4-5 m) | 200 kg (>=15 m), 230 kg (10-12 m), 250 kg (8-9 m), 300 kg (6-7 m) | 200 kg (>=15 m), 230 kg (10-12 m), 250 kg (8-9 m), 260 kg (6-7 m), 300 kg (4-5 m) |
| Lifting Speed | 18-22 m/min | 18-22 m/min | Not specified in current data |
| Self-Weight | 53-195 kg (varies by height) | 64-180 kg (varies by height) | 75-202 kg (varies by height) |
| Motor | PA200 copper-wound motor | PA200 copper-wound motor | PA200 copper-wound motor |
| Support Rods | Included for heights of 12 m and above | Included for heights of 12 m and above | Included for heights of 12 m and above |
Load capacity decreases as lifting height increases. See the full specification for the height/load configuration of each model.
Download specification sheets: Flip-type PV Panel Lifter PDF · Sloping Roof Photovoltaic Panel Lift PDF · Automatic Turning Solar Panel Lift PDF
See the Lifts in Real Installation Work

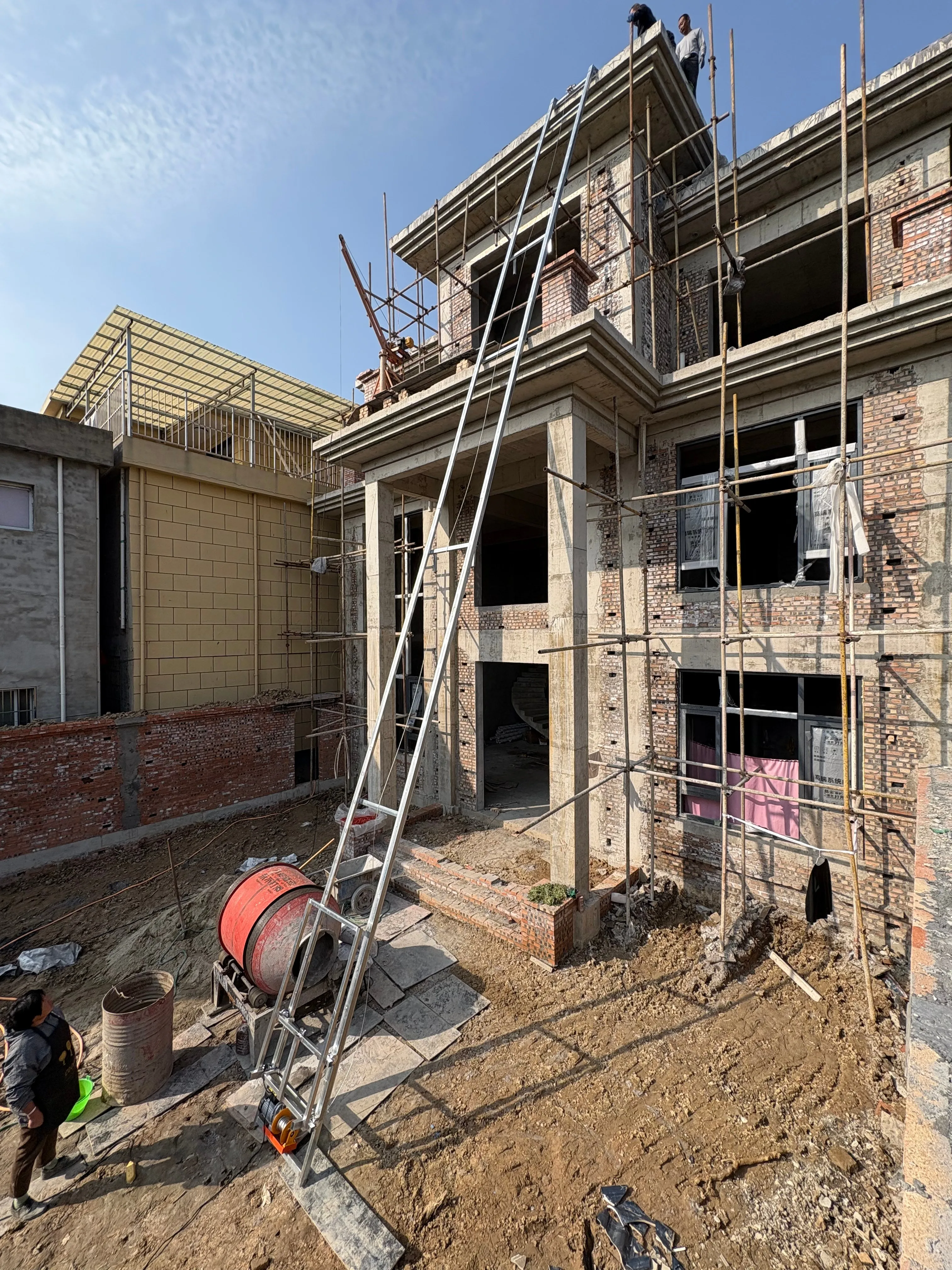

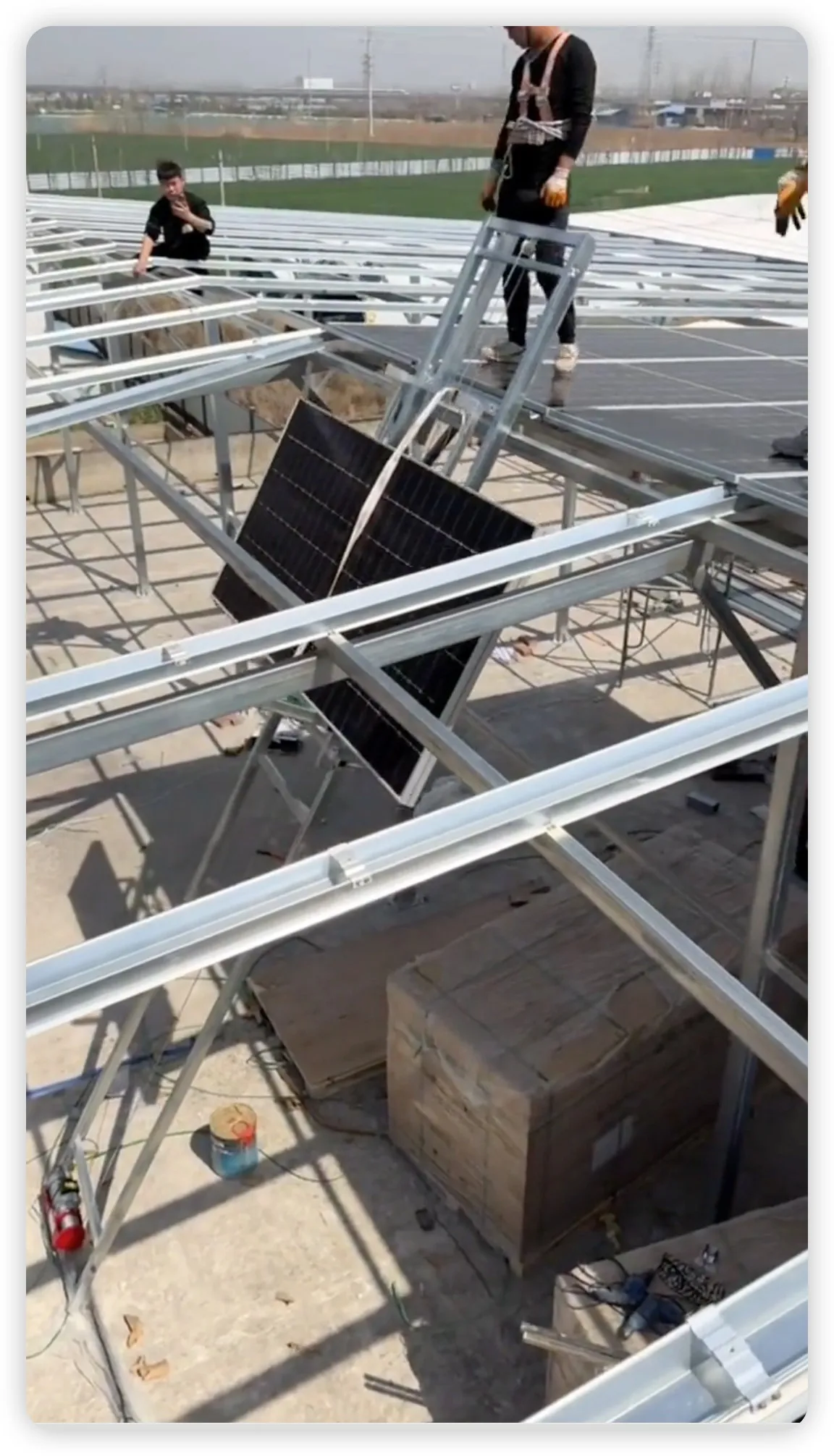

Flip-type PV Panel Lifter

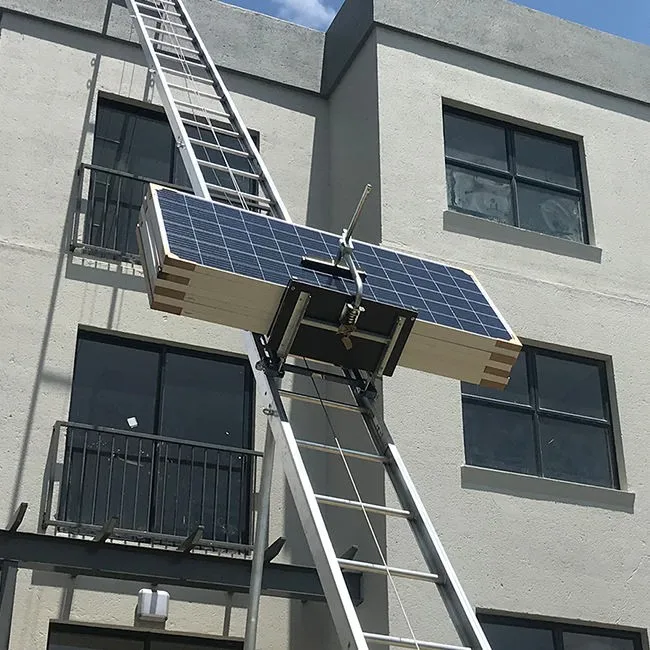

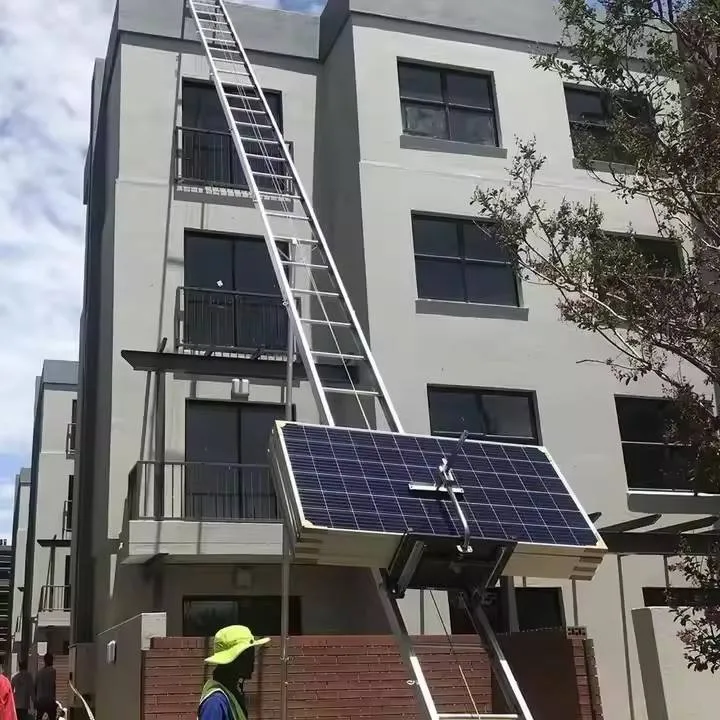

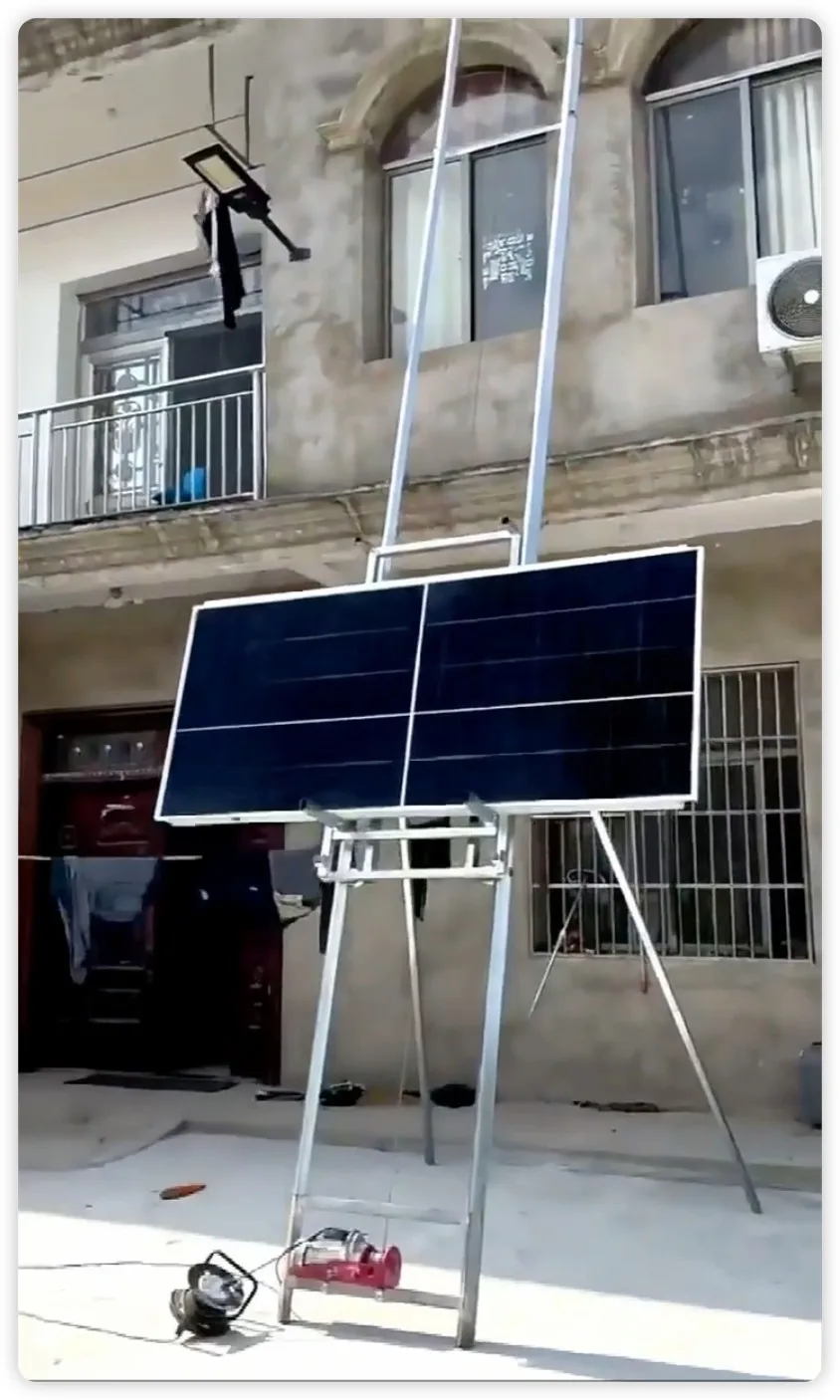

Sloping Roof Photovoltaic Panel Lift

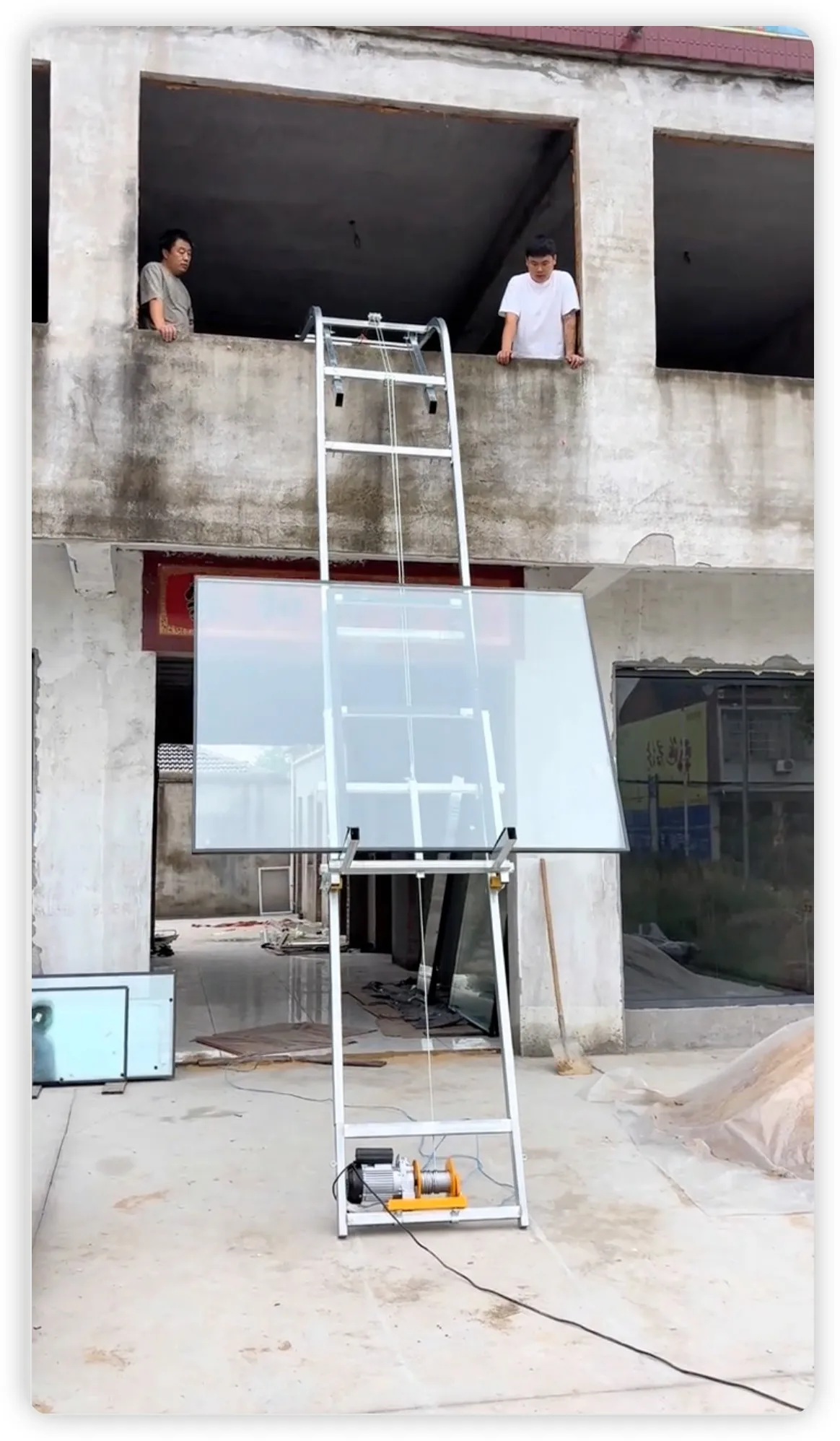

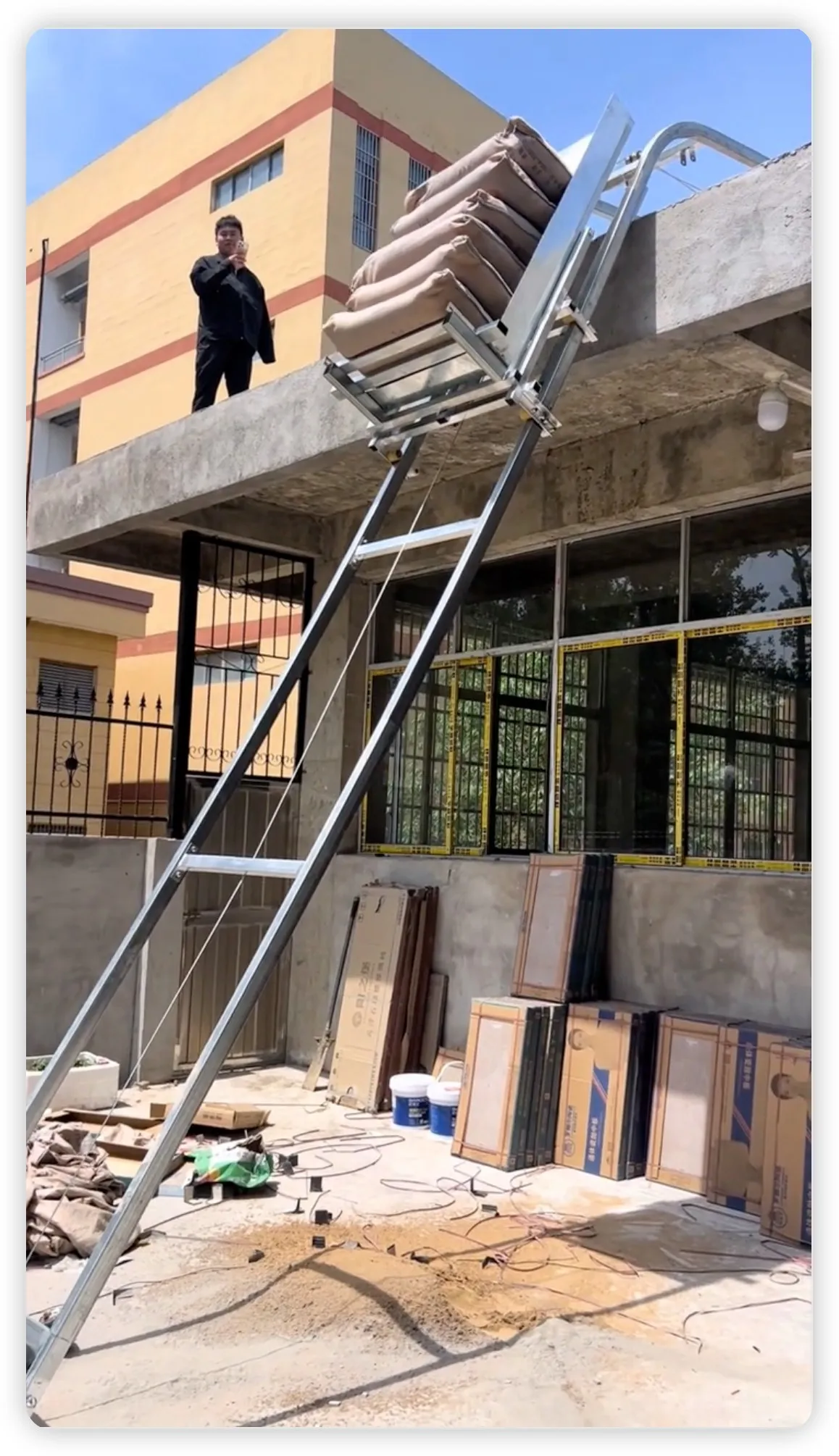

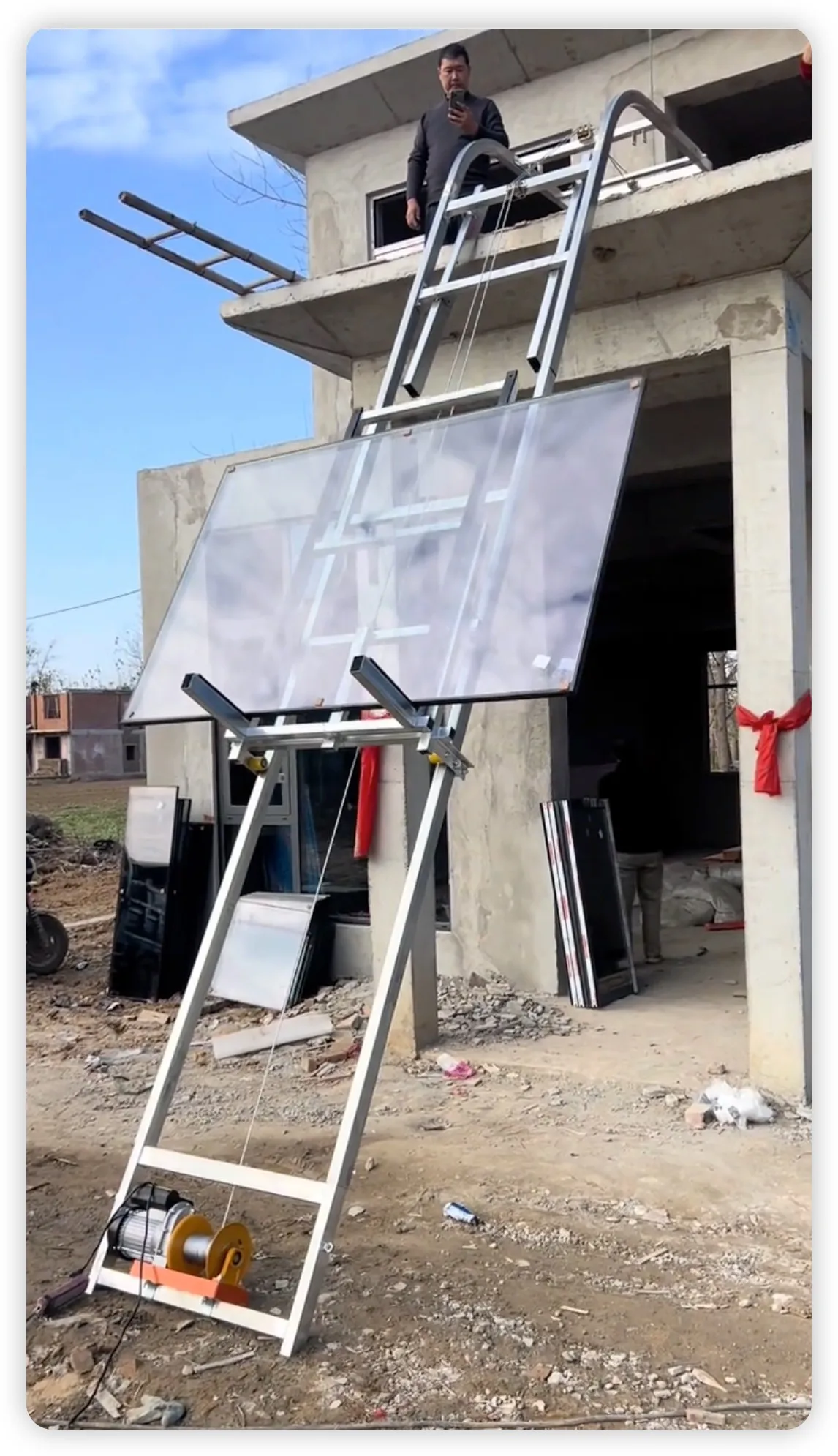

Automatic Turning Solar Panel Lift
Choose a Configuration for Your Installation
- Flip-type PV Panel Lifter — flip-type platform configuration.
- Sloping Roof Photovoltaic Panel Lift — sloping-roof configuration.
- Automatic Turning Solar Panel Lift — automatic turning configuration (components include a turning component, 13 anti-slip wheels and a 5 m steel wire rope).
The three configurations differ in platform mechanics. Which configuration suits your roof depends on the site. Confirm the selected model and destination country with our sales team.
Compliance
Compliance documentation is available for applicable models and configurations. Requirements vary by product configuration and destination market. Please confirm the selected model and destination country with our sales team before ordering.
